Winnerwell Nomad View Medium Tent Portable Stove 800 Cubic Inch Firebox Outdoor Stoves

Winnerwell Nomad View Medium Tent Stove is a perfect portable Wood Burning Stove for Tents, Shelters, and Camping | 800 Cubic Inch Firebox | Precision Stainless Steel Construction | Includes Chimney Pipe. Ideal for Bushcrafters and Outdoorsman who need to heat and cook small spaces such as canvas tents, teepees, yurts, cabins, shacks, tiny homes and more.

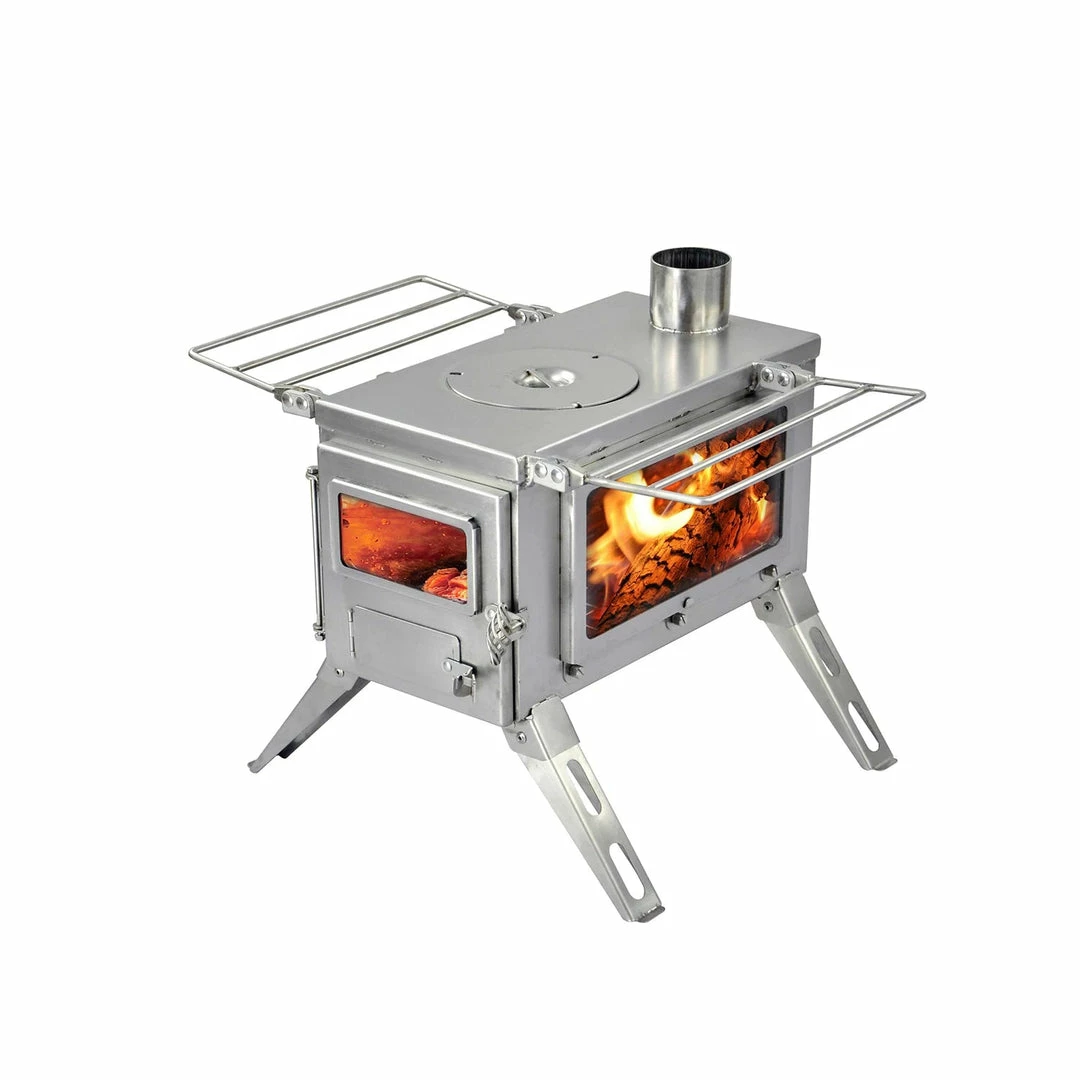

With its rectangular firebox, two viewing windows, and nesting 4-leg design, the Winnerwell Nomad View Medium Wood Burning Tent Stove is truly unique in the world of portable wood stoves and provides stunning ambiance when in operation. Made with quality 304 stainless steel, the Nomad View is an excellent heating and cooking solution in compatible canvas tents and a range of recreational shelters. The nesting 4-leg design gives the Nomad a smaller footprint than the Woodlanders, making it a good option for small spaces where a fireproof hearth area is used to reduce required clearances.

Features & Specifications

• Precision-crafted in 304 Stainless Steel that is highly resistant to rust and corrosion (1/8” thick cooktop material, 1/16” thick body material)
• Includes 1 stove body, 1 airflow controller pipe, 4 sections of straight chimney pipe (2.5” diameter, 14” length), 1 spark arrestor, and 1 ash scraper
• Weight: 20 pounds

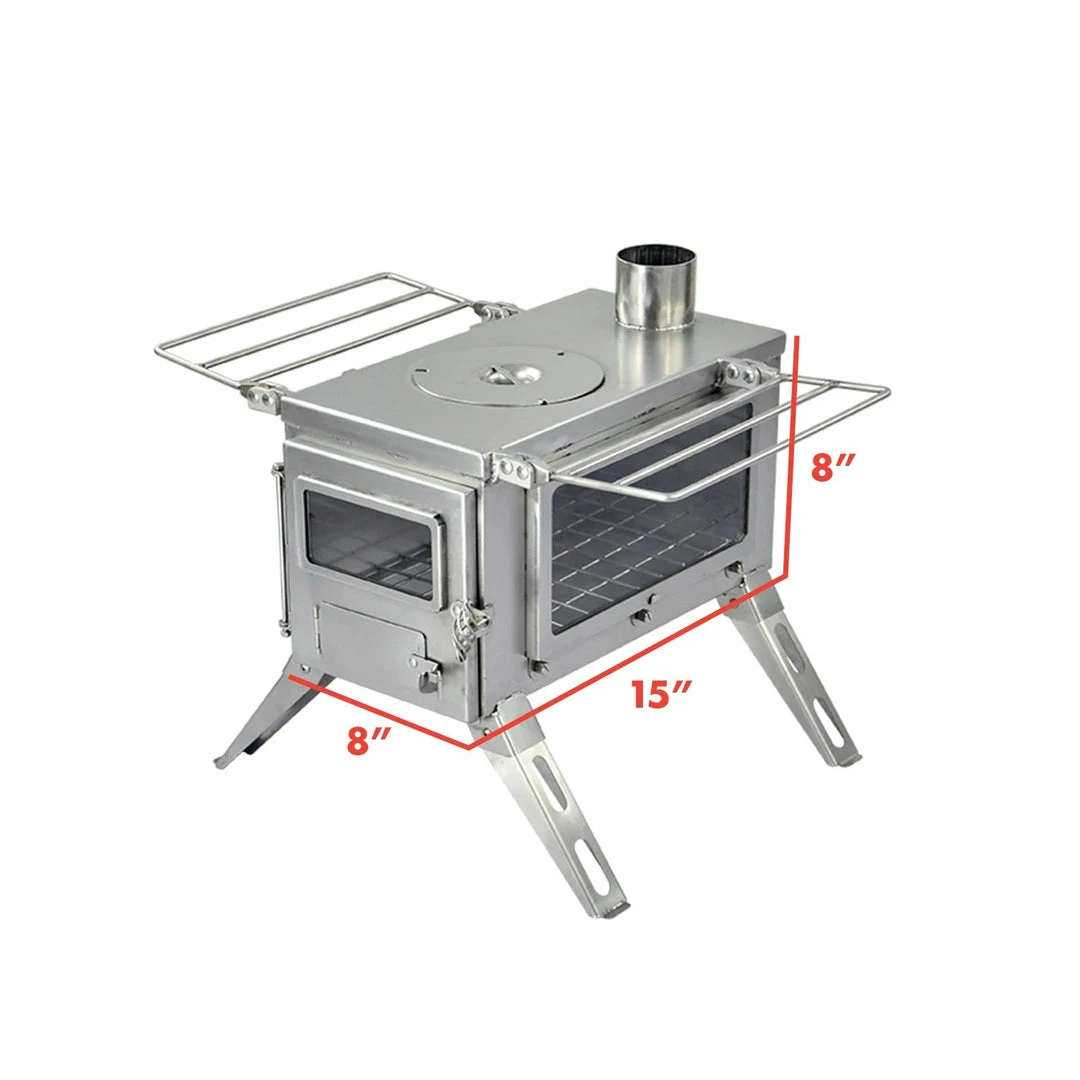

• Packed Dimensions/Stove Body Dimensions: 15” x 8” x 8”
• Assemble Dimensions: 15” x 20” x 90” (90” indicates total height from the ground to the spark arrestor)
• Footprint Dimensions: 16” x 13.5”
• Firebox Capacity: Approx. 800 cubic inches (15” stove body depth nicely accommodates split wood)
• Fuel Type: dry, seasoned wood only (not intended for coal burning)
• Door features an air-control damper and a glass window for fire management and ambiance
• Large side viewing window for ambiance and fire management
• Level side shelves lend cooking versatility and double as a carry handle
• Highly portable- Nesting legs and shelves fold flat to the stove body; 5 pipe sections, spark arrestor, and an ash scraper stow inside the stove body
• Wide 4-leg design helps keep the stove stable on uneven surfaces
• Compatible with Medium Size and 2.5” Winnerwell Accessories
• Certifications: N/A (This is a recreational wood burning stove not intended for residential use)



Operating Tips: Efficient and proper use of a wood stove requires some patience and practice. When starting your fire, it’s important to quickly establish a hot bed of coals to initiate a strong draw of air through the stove and up the flue. Use a generous amount of small tinder when starting a fire in the stove, slowly adding larger pieces of wood. Always open the door slowly to prevent smoke spillage into your tent or shelter. Never start a fire using flammable accelerates such lighter fluid. We strongly recommend operating your stove outside for the first several burns to practice your fire starting technique and optimizing burn temperature and rate using the airflow controls. It’s important that your stove burns hot enough to efficiently combust the fuel- when the stove is burning efficiently, little to no visible smoke should be exiting the chimney pipe. If the chimney is belching thick visible smoke, this is an indication the stove is not burning efficiently. Also avoid overloading the stove with fuel as this can create excessive heat which can warp or damage the stove.

Accessory Recommendations: For added cooking utility, we recommend the Medium Water Tank and the 2.5” Pipe Oven. The water tank is excellent for melting snow and ice for drinking water, and when the stove is burning efficiently the tank will boil water in minutes thanks to its location at the back of the cooktop and the base of the flue pipe where heat is concentrated. The 2.5” Pipe Oven is large enough to cook biscuits, cookies, baked potatoes, and more. Using a large skillet or dutch oven on the cooktop in conjunction with the Pipe Oven provides a very functional camp kitchen set up.

Installation Recommendations: Always maintain adequate clearances when using a wood stove in a tent or shelter. We recommend at least 18-inches between the stove and any combustible material. When using a non-combustible heat shield or fireproof hearth, clearances can be reduced by half. We strongly recommend the use of a Double Wall Pipe Section and a Flashing Kit where the flue exits the tent or shelter. Always ensure the flue exits through a fireproof stove jack and the combustible materials are kept clear of the stove or flue. Whenever possible, secure the legs of the stove using tent stakes, bolts, or other adequate anchors to prevent the stove from tipping over. This is especially critical in shelters prone to movement like a trailer or boat.
